Wall hung bowl urinals

Barron wall hung bowl urinal

Features:

  •  Grade 304 (18/10) Stainless Steel, 1.2mm gauge
  • Heavy duty construction, hygienic cannot chip or crack
  • Pressed bowl with a bright polished finish on exterior
  • Aesthetically appealing – matches any décor
  • Available in two models: Top Entry and Back Entry
  • Easy to Install Surface Mounting

Top flush entry. NOTE: Flush valve, bottle trap & fittings are not included, must be ordered separately.

Stainless steel wall hung urinal

Stainless steel wall hung urinals with Walcro 330U flush valves. ideal for public places, industrial factories, commercial installations. The Barron urinal can also accommodate a back entry concealed flush mechanism for vandal resistant installations.

Barron urinal top entry

Franke Model TE (Top Entry Inlet) Barron Bowl Urinal, 316 x 425 x 241 mm. Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 1,2 mm gauge. Unit to be complete with 40 mm waste outlet with a pressed perforated Stainless Steel grid and a chrome plated button spreader with a 15 mm coupling to connect to water supply. Bowl to be fitted with a 2 mm thick mounting plate with two key hole slots for mounting the unit to the wall. (Bolts elsewhere measured).

Franke Barron urinal optional fittings

Top entry bowl urinal showing placement of flush valve (flush valves optional)

barron-urinal-diagram

Recommended Fittings for top entry models:

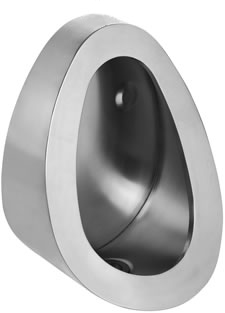

Barron  urinal back entry

Franke Model BE (Back Entry Inlet) Barron Bowl Urinal, 316 x 425 x 241 mm. Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 1,2 mm gauge. Unit to be complete with 40 mm waste outlet with a pressed perforated Stainless Steel grid and a chrome plated button spreader with a 15 mm coupling to connect to water supply. Bowl to be fitted with a 2 mm thick mounting plate with two key hole slots for mounting the unit to the wall. (Bolts elsewhere measured).

Recommended fittings for back entry models:

  • Walcro 103LURXP duct urinal flushing valve
  • Walcro 103LURC  duct urinal flushing valve
  • Walcro 107CHP-UR built-in box urinal flushing valve
  • Walcro 155 concealed urinal flush valves
Franke barron wall hung urinal

F-BARRON-BE Back entry bowl urinal. Hidden flush valves are used.

barron-urinal-diagram

Stainless steel urinal

The stainless steel urinal is ideal for installations where the trough or curved back urinals are too big.  These urinals are wall mounted and thus installation is easier.

The stainless steel urinal can be ordered with top entry or back entry flush system, please specify when ordering as it will have a significant impact on the flush mechanism being used.

The stainless steel urinal comes with a spreader and 40mm waste outlet with CP brass waste fitting. Note that p-trap is not included.

There are various flush valves that can be used with the bowl urinal, remember, it will either be a top entry flush valve or back entry flush valve.

Features:

  • Grade 304 stainless steel
  • Top entry or back entry
  • Wall hung
  • Modern design
  • Vandal resistant

Available models are as follows

Top entry flush valves:

Back entry flush valves:

  • Walcro 155UW – 15 mm with flange 30 – 600 kPa
  • Walcro 155UWS – 15 mm with stainless steel sleeve 30 – 600 kPa
  • Walcro 107CHP-UR – 20 mm boxed built in 30 – 600 kPa
  • Walcro 103LURCXP – Duct 20 mm 30 – 600 kPa with XP button
stainless steel wall hung urinal suppliers

SS-URINAL-TE Stainless steel wall hung urinal. Comes with spreader and waste dome. Made from grade 304 stainless steel.

Stainless steel wall urinal diagram side

SS-URINAL-BE back entry urinal diagram

stainless steel wall hung urinal diagram

Ceramic wall hung urinals

High quality ceramic wall hung urinals are ideal for commercial applications.  Used extensively in schools (from middle to high schools), sports arenas, hospitals, clinics, offices, retail buildings such as malls etc.  Three sizes to choose from, 600 mm, 500 mm and 400 mm high units.  All the ceramic wall hung hung urinals come with their top entry or back entry spreaders, wall mounting brackets and waste grid. The urinal flush valves are optional and there is a wide range to choose from.  Most industrial installations use manual flush systems but in institutional installations such as in shopping malls, infra red flush valves are mostly used.

white ceramic wall hung urinal sanitary

Ceramic wall hung urinal with top entry flush valve and straight flush pipe with spreader.

Top entry units:

  • Walcro 330UR 15 mm exposed single bowl flush valve
  • Walcro 103LUR – 20 mm exposed single bowl flush valve
  • Infra red concealed or exposed flush valves (6V or 230V)

Back entry units

  • Walcro 155UW 15 mm built-in flush valve with wall plate
  • Walcro 155UWS 15 mm built-in flush valve with sleeve
  • Walcro 107C/HP-UR 20 mm built-in concealed flush valve.
  • Walcro 103LURCXP 20 mm unit for use in ducting as in prison cells or high vandal areas.
  • Infra red concealed flush valves (6V or 230V)

Similar to the ceramic wall hung urinals are the stainless steel wall hung urinals.  They are mostly used in vandal prone locations but the flush valves are the same.  We do however recommend using a concealed stainless steel flush valve with a small sleeve to minimize risk of theft. The stainless steel urinals are also available in a high security back plate which are often used in prisons and holding cells.

wall hung white ceramic urinal

BS40 range of ceramic urinals
LE-ATLBOXURI0T40BE top entry
LE-ATLBOXURI0B40BE back entry
LE-ATLBOXURIWL40BE waterless waste.

wall hung white ceramic urinal

BS50 range of ceramic urinals
LE-ATLBOXURI0T50UE top entry
LE-ATLBOXURI0B50UE back entry
LE-ATLBOXURIWL50BE with waterless waste

wall hung white ceramic urinal

BS60 range of ceramic urinals
LE-ATLBOXURI0T60UE top entry
LE-ATLBOXURI0B60UE back entry

wall hung white ceramic urinal small industrial top entry

BS-40 dimensions



wall hung white ceramic urinal diagram

BS-50 dimensions

ceramic large white urinal wall hung sanitary ware

BS-60 dimensions

Exposed top entry flush valves for urinals

walcro-103lur-urinal-flush-valve

Walcro 103LUR top entry urinal flush valve

walcro-330ur-urinal-flush-valve-basic

Walcro 330UR Top entry exposed urinal flush valve

Concealed back entry flush valves for urinals

Urinal flush valve with wall plate

Walcro 155UW 15mm flush valve with flange. Used for top entry wall hung single bowl urinals

toilet flush valve for prisons

The Walcro 155UWS flush metering valve is designed for high vandal areas. The buttom is protected by a stainless steel sleeve.

urinal flush valve concealed walcro 107

The Walcro 107CHP-UR urinal built-in boxed flush valve. Ideal when the ability to access the valve is important.

Urinal flush valves for prisons (duct type)

duct urinal flush valve prisons security

Walcro 103LURC urinal flush valve for duct installations

concealed flush valve for urinals in a duct

Walcro 103LURCXP urinal flush valve for duct installations
