School urinals

TU101: Flush valve/cistern flat back trough urinal

Model TU101 flat back trough urinal is wall mounted. The TU101 comes in various lengths, from 610 mm to 1830 mm. Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 0,9mm gauge. Urinal to be supplied with a concealed sparge pipe and a 22mm inlet with chrome plated conex fitting for connecting to a high level cistern or high volume urinal flush valve (such as the Walcro 550URV). The school urinals have an outlet situated on the left or right (please specify when ordering) with a recess for 40mm chrome plated waste outlet (to be supplied).

Urinal to include a tiling key to sides and rear walls. The back to be fully sound deadened with vermin proof  bitumastic material.

TU102: Auto-Flush valve/cistern flat back trough urinal

Model TU102 flat back trough school urinal is also wall mounted, similar to the TU101.  The TU102 comes in various lengths, from 610 mm to 1830 mm. The school urinal is manufactured from Grade 304 (18/10) Stainless Steel, 0,9mm thick. The urinal is supplied with built-in tipping tank and a 12 mm adjustable drip cock (inlet) which controls the automatic flushing of the urinal at regular intervals. Units longer than 1850 mm have two inlets for better flushing. The outlet is situated on the left or right (please specify before ordering) of the urinal with a recess for a 40mm chrome plated waste outlet (supplied with the school urinal).

A tiling key is manufactured to the sides and rear walls. The back is fully sound deadened with vermin proof bitumastic material.  There is no need to install an external or concealed flush valve on the TU102 unit. It is however highly recommended to install a stop cock close to the urinal in order to easy maintenance of the internal mechanism.

Read more about flush valves for urinals here.

Features:

  • These school urinals are manufactured from Grade 304 (18/10) Stainless Steel
  • Back of urinal fully sound deadened
  • Sides and top complete with tiling key.
  • For use with flush valve or high level cistern
  • Concealed sparge pipe
  • Free standing ends where end plate is exposed
  • Left or right outlets (provision for 40mm waste outlet)
  • Standard lengths of 610 to 1830mm
  • 22 Workday lead time for manufacturing required if there is no stock.
urinal flush valve trough curved back mechanism supplier south africa

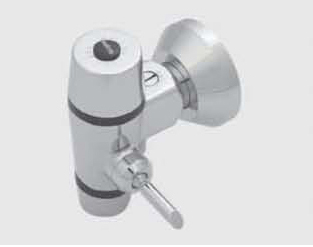

W-550URV flush valve designed for manual flush TU101 urinals. TU101 urinals do not have a tipping tank.

franke school flat back urinal tu101 tu102 autoflush

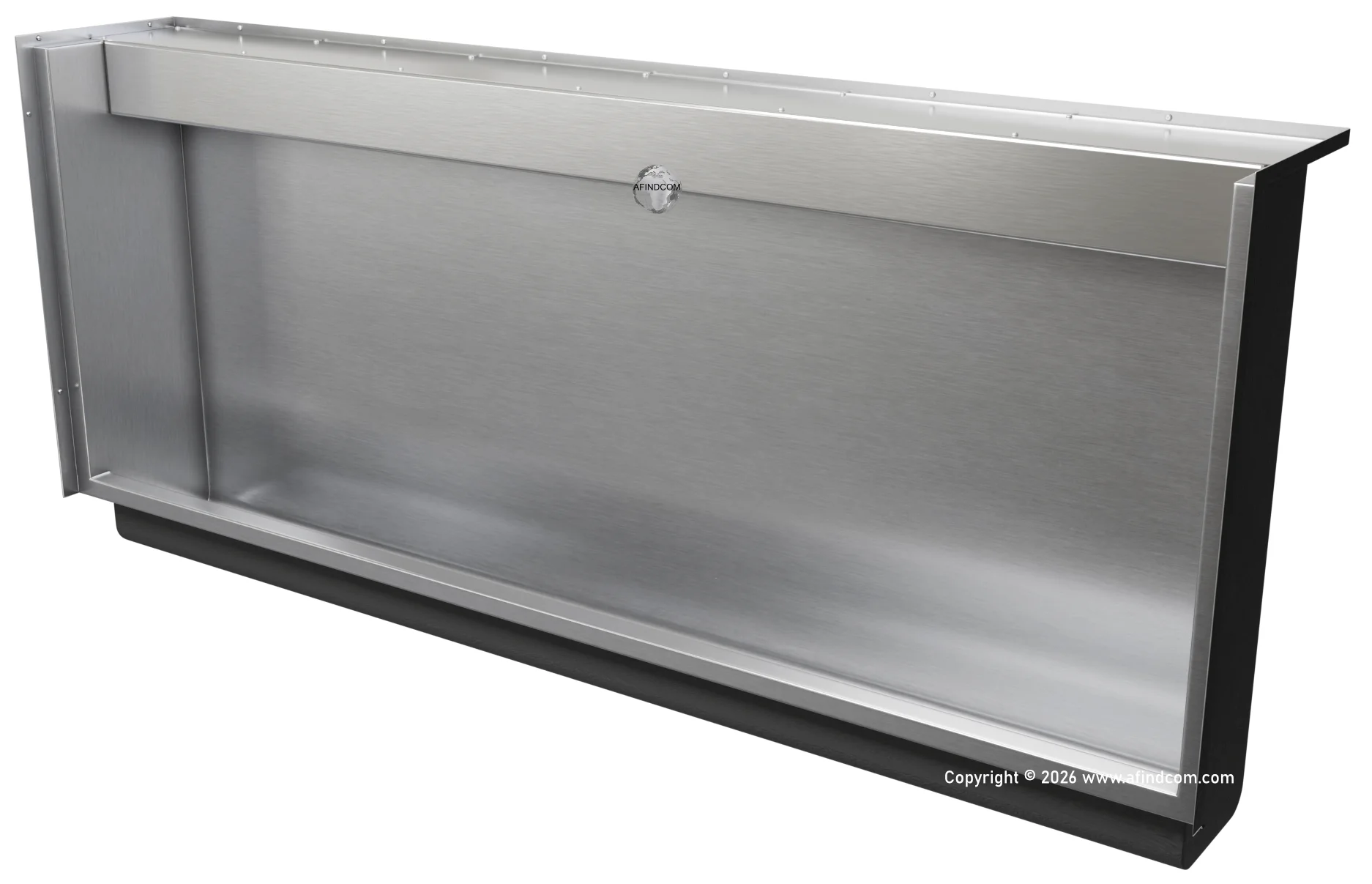

TU102 Autoflush flatback school urinals

urinal supplier south africa sadc stainless steel

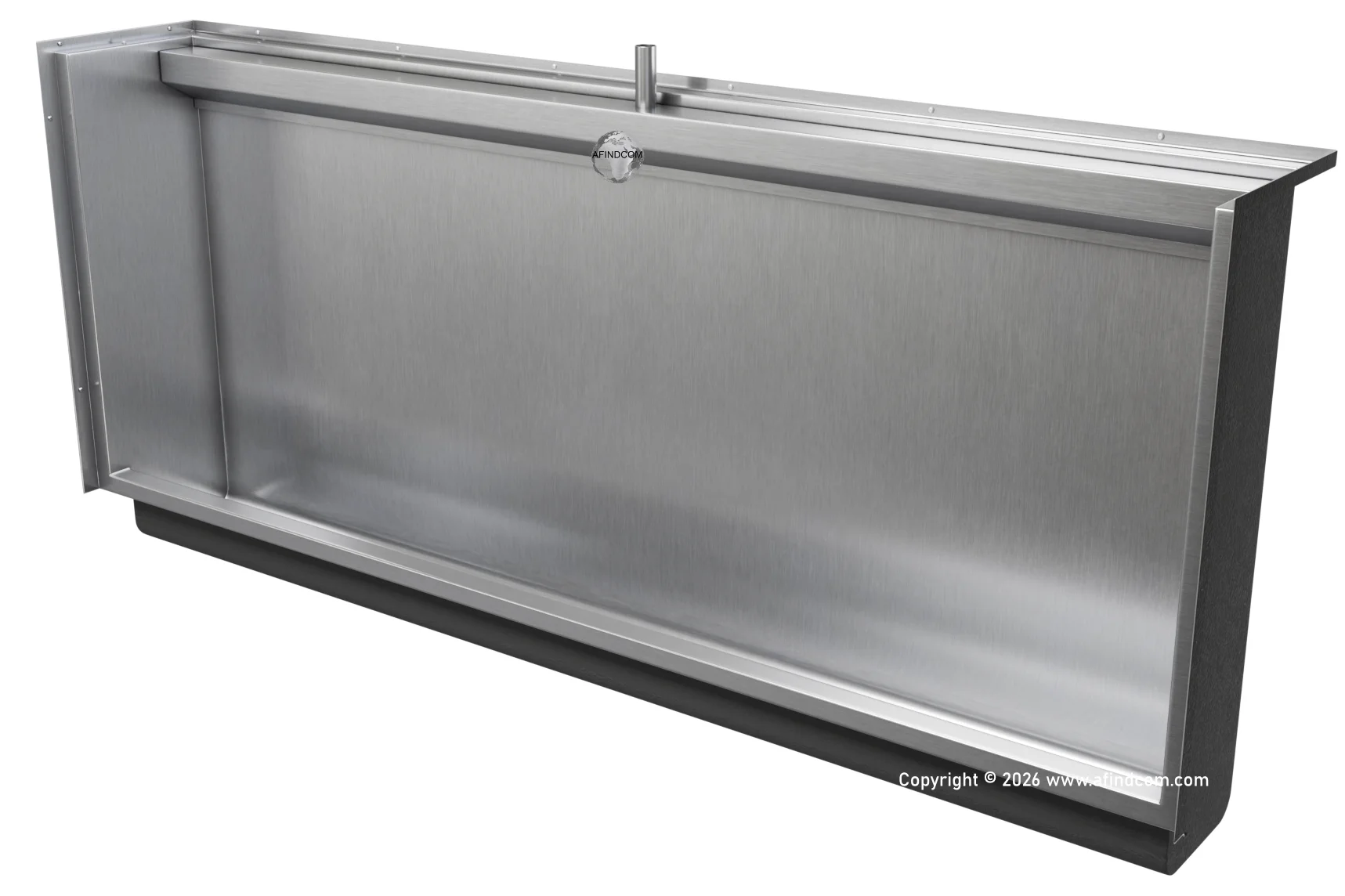

TU101 Large flat back school urinals made from stainless steel. Various lengths are available. Made in South Africa. Height cannot be changed. Auto-flush and manual flush models are available.

Note the height of the trough school urinal cannot be changed.
