Medical basins

Stainless steel medical sinks

Model F-MDS

Model MDS double bowl stainless steel medical sink. Dimensions 1200 x 650 x 258mm manufactured from 1.2mm thick grade 304(18/10) stainless steel. Designed with a 50mm apron all around and hospital beading of 5mm deep around edges for hygiene. Sink is manufactured with pressed bowls 525x425x258mm (43 Litres) and with a 40mm sink waste outlet. The unit is fixed to the wall with gusset brackets. Front legs are optional and normally not used in hospital applications. Deck mounted medical mixers such as the CO-521-21/N are recommended.

double bowl medical stainless steel ward sink 2620290

F-MDS
Double bowl medical sink. Grade 304 (18/10) 1.2mm stainless steel.

double bowl medical sink diagram dimensions

elbow operated pillar deck mounted medical tap mixer

CO-521-21/N
Deck mounted elbow operated medical tap.

Model CB-MED

Model CB-MED single bowl stainless steel medical sink. Dimensions 480 x 400 x 170mm manufactured from 1.2mm thick grade 304(18/10) stainless steel. Designed with a 100mm apron all around. Sink is manufactured a pressed bowl 440 x 275 x 170mm deep (43 litres) with a 40mm waste outlet. The unit is fixed to the wall with gusset brackets. Deck mounted medical mixers such as the CO-521-21/N are recommended. Standard pillar taps such as the W-480HL-BL and W-480HL-RD can also be used.

CB-MED wall hung hospital basin hygia replacement 703600WH CHYBABFI-2CO vaal

CB-MED
Stainless steel medical basin with elbow action medical mixer CO-515-21



stainless steel hospital medical doctors clinic basin

CB-MED
Stainless steel medical basin with elbow action medical pillar taps



Vaal Hygia replacement medical basin tap

CB-MED515
Stainless steel wall mounted medical basin with medical elbow operated tap.

F-OVAL-C small medical basin

The F-OVAL-C range is ideal for areas where limited space is available but where a hand wash basin is required. With dimensions 330 x 245 x 130mm, you cannot get more hygienic, practical and smaller. Fit any standard elbow action tap to the left or right. The F-OVAL-C is made from grade 304 (18/10) stainless steel which makes it suitable for hospitals, clinics and doctors rooms.

small hygienic medical stainless steel medical basin

F-OVAL-C-1THR
Small wall hung stainless steel medical basin with elbow action medical pillar tap.

small medical basin dimensions

The F-OVAL-C with right hand tap hole. Left hand tap hole can also be made. We recommend only one tap because the basin is so small.

Model F-MSS

Model MSS single bowl stainless steel medical sink. Dimensions 650 x 650 x 258mm manufactured from 1.2mm thick grade 304(18/10) stainless steel. Designed with a 50mm apron all around and hospital beading of 5mm deep around edges for hygiene. Sink is manufactured a pressed bowl 525x425x258mm (43 Litres) and with a 40mm sink waste outlet. The unit is fixed to the wall with gusset brackets. Front legs are optional and normally not used in hospital applications. Deck mounted medical mixers such as the CO-521-21/N are recommended. Standard pillar taps such as the W-480HL-BL and W-480HL-RD can also be used.

single bowl medical ward sink stainless steel 2620259

F-MSS
Single bowl medical sink. Made from 1.2mm grade 304 (18/10) stainless steel.

single bowl medical sink diagram dimensions

elbow action medical lever basin pillar taps

Deck mounted elbow action medical pillar taps. W-480HL-RD hot water and W-480HL-BL for cold water.



Hygia hospital medical basin – VL-703600WH

Medical basins or medical sinks are made from ceramic fireclay. The Hygia dimensions are 585 x 435 mm. The medical basin is ideal for doctors rooms, surgical theaters, clinics, hospitals. It is also used in many food processing plants where hygiene is important. The basin includes a 1/4 turn wrist action mixer (code VL-8376Z0), chrome plated waste (code VL-8794Z0), overflow tube (code VL-8630Z0), two fixing screws, plugs and chrome plated caps (code VL-8513Z0). Supplied with two tap holes to the splashback of the basin.

  • 32mm basin waste unslotted, 62mm flange, 80mm tailpiece. (Cobra code CO-308)
  • Chrome plated bottle trap (Cobra code CO-340)
  • Basin weight: 35kg
hygia vaal 703600 medical basins ceramic CHYBABFI-2CO

VL-703600WH
Hygia wall hung medical basin with medical elbow operated tap
Discontinued

vaal medical basin hygia only 703611WH ceramic wall hung

VL-703602WH
Hygia medical basin only. No taps or plumbing fittings.
Discontinued



Sola medical hand wash basins

The Sola medical hand wash basins (VL-703600 or VL-703800) are suitable for doctors rooms, clinics, laboratories, and some parts of hospitals. They are not suitable for extreme hygiene installations such as surgeon scrub units or operating theaters. The reason is that the Sola medical basins do not have a splashback behind the bowl. The water will splash back from the wall onto your hands during washing and walls cannot be sterilized like ceramic or stainless steel.

Specifications:

  • VL-702800WH – Sola 630: Made from vitreous china with dimensions 630 x 500 mm, semi-rectangular medical basin with no tapholes, overflow or chainstay hole (CSO63JNN-2CO0413).
  • VL-703700- Sola 510: Made from vitreous china with dimensions 510 x 400 mm, semi-rectangular medical basin with no tapholes, overflow or chainstay hole (CSO51JNN-2CO0413).

Optional for the medical basins

  • 32mm standing overflow tube, chrome plated (code VL-8630Z000)
  • Medical mixer (Cobra code CO-515/053232H21 – Discontinued, please use CO-515/055-21 instead)
  • 32mm basin waste unslotted, 62mm flange, 80mm tailpiece. (code CO-308)
  • Chrome plated bottle trap (Cobra code CO-340)
  • Cobra CO-507 elbow action medical mixer is also suitable
Sola 510 Medical basin vaal

VL-703700
Sola 510 Medical basin

Sola 630 Medical basin scrub basins doctors clinic africa zambia suppliers malawi

VL-702800
Sola 630 Medical basin

Alternative mixers for the medical basins

medical elbow pillar tap

CO-503-21R
Medical elbow action basin pillar tap for hot water



cobra watertech medical mixer tap scrub wall mounted

CO-507
Wall mounted medical elbow action tap

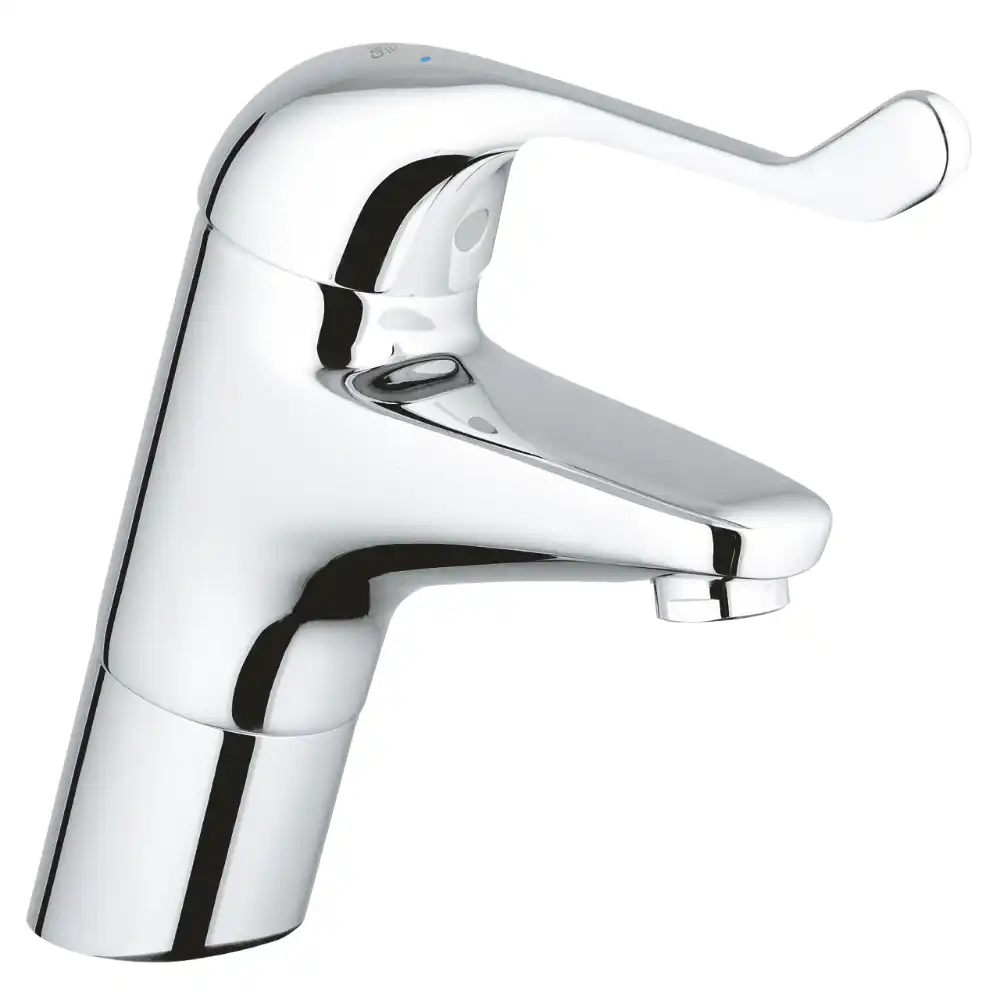

elbow operated pillar deck mounted medical tap mixer

CO-521-21/N
Deck mounted elbow operated medical tap.
